260W Handheld Laser Obstacle Clearance Machine with Telescopic Lens | X Laser Handheld Igniter

260W Split-Power Laser Obstacle Remover with Tripod and Green Guide

The 260W  Laser Obstacle Clearance Machine with Telescopic Lens is a professional split-power system for qualified operators. The laser unit connects to a separate battery pack and supports small, large, or dual-lens configurations. A universal tripod interface, coaxial green aiming reference, wireless remote, physical body switch, and keyed master switch support controlled professional setup.

Product Information

• Product type: Laser Obstacle Clearance Machine.

• Brand: X Laser.

• Optical power: 260W.

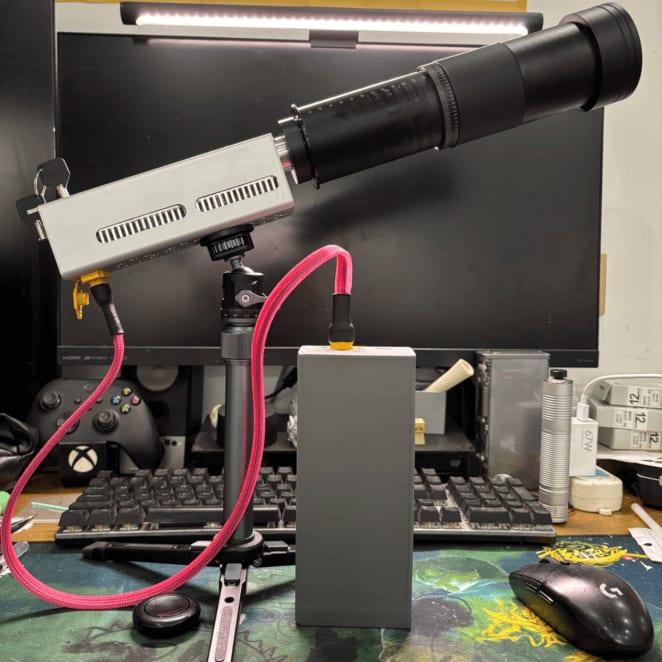

• Power connection: XT60 interface with a separate battery pack.

• Lens options: Small focusing lens, large focusing lens or dual-lens kit.

• Tripod compatibility: 1/4-inch and 3/8-inch connections.

• Cooling: Air-cooled design.

Long-Distance Performance Conditions

Supplied test information records penetration of a selected beverage can at approximately 20 meters and ignition of selected black or dark cardboard at approximately 50–55 meters with the large lens. These observations are conditional test references, not guaranteed results.

Long-distance operation requires all three conditions below:

1. The device must be securely fixed and stabilized.
2. The focusing lens must be adjusted manually for the target distance.
3. The operator must have a clear, unobstructed view of the distant target and controlled work area.

Actual results depend on target absorption, lens selection, focus, stability, battery condition, visibility, weather, and environmental conditions.

Three-Layer Control System

• Physical body switch: Provides direct local control at the laser unit.
• Wireless remote: Supports controlled remote start and stop from an appropriate operating position.

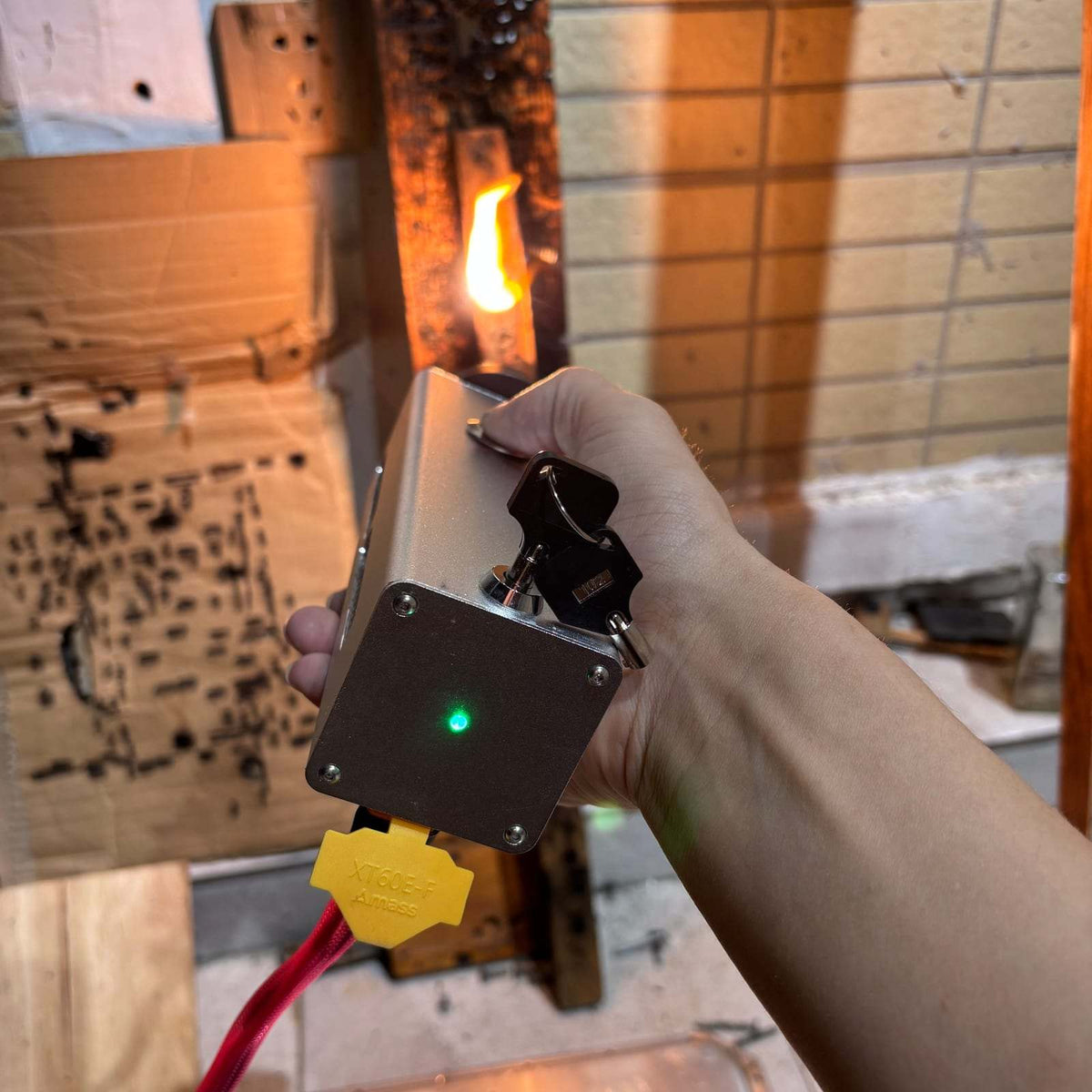

• Keyed master switch: Helps prevent unauthorized activation when the key is removed.

Tripod Compatibility and Green Aiming Guide

The universal mounting interface supports both 1/4-inch and 3/8-inch tripod connections. Stable mounting is essential when evaluating longer distances. The coaxial green light is an aiming reference only. It does not carry the working output energy and does not show the complete laser hazard area.

Configuration

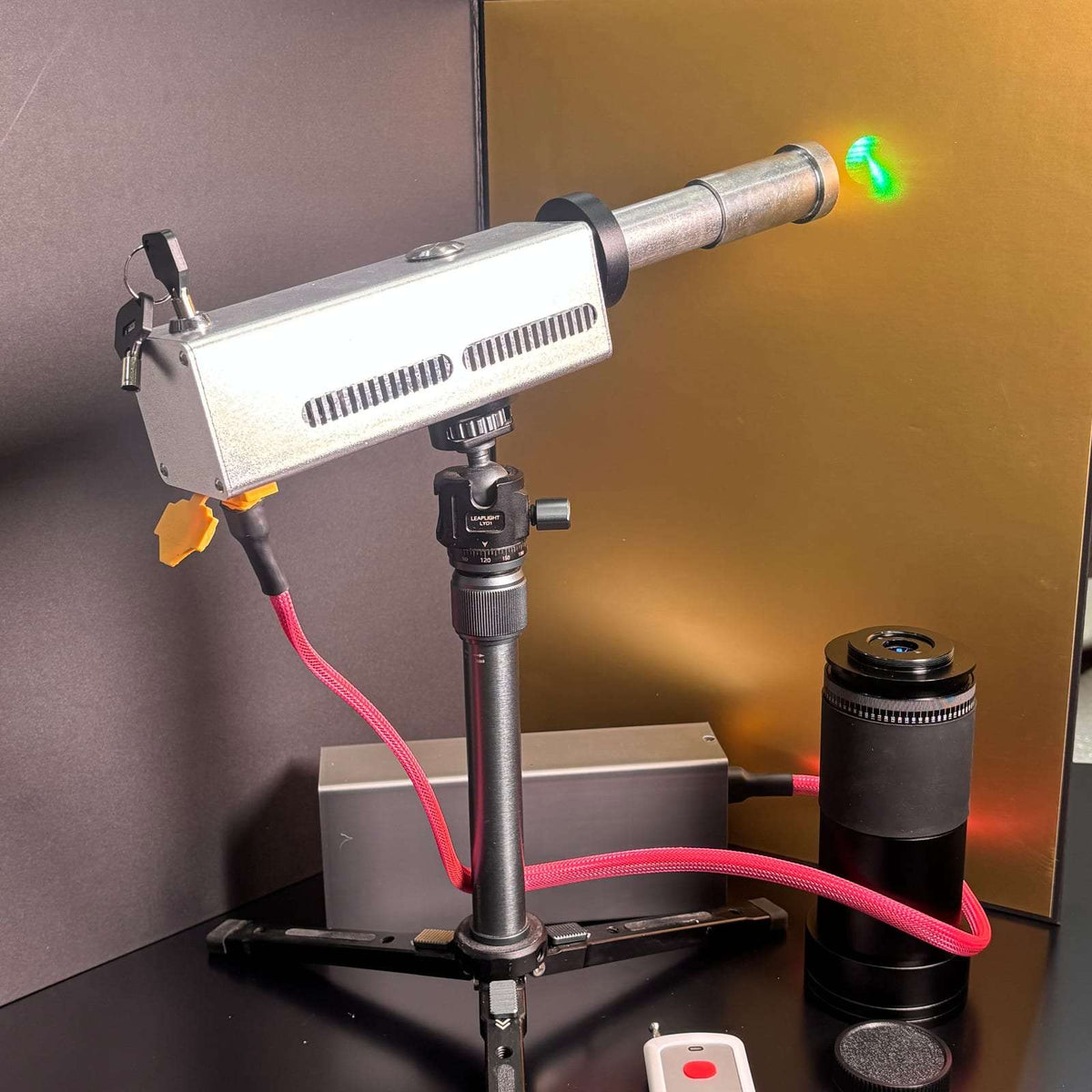

• Small Focusing Lens Kit — : main unit, tripod, battery, wireless remote, power cable, charger, and small focusing lens.

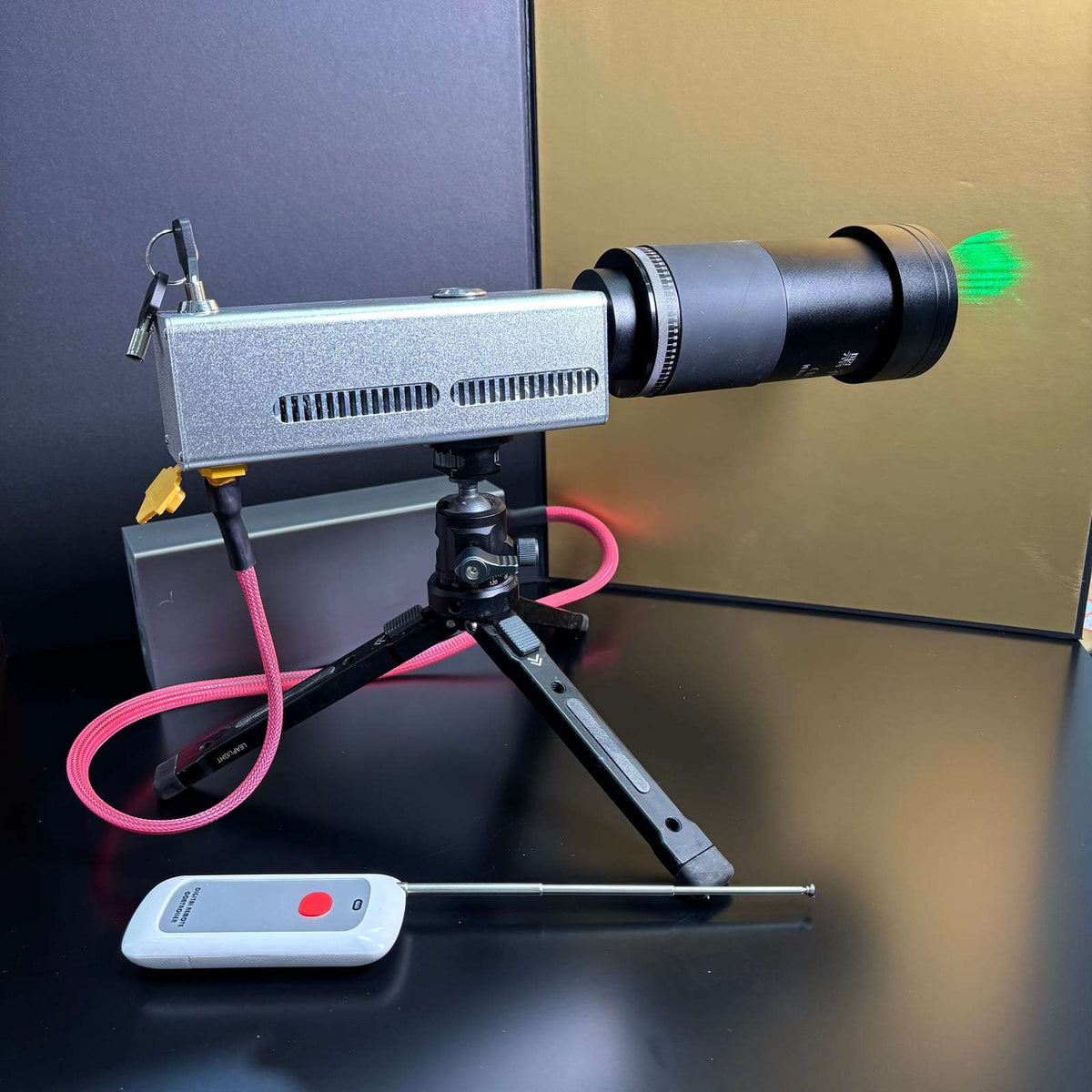

• Large Focusing Lens Kit — : main unit, tripod, battery, wireless remote, power cable, charger, and large focusing lens.
• Dual-Lens Kit — : main unit, tripod, battery, wireless remote, power cable, charger, large focusing lens, and small focusing lens.

Product Specifications

Professional Applications and Buyer Guidance

This system may be considered by qualified maintenance teams and professional service providers for controlled obstacle-removal assessment where permitted. Product selection must account for the target, distance, lens, site visibility, surrounding infrastructure, work-area controls, training, and applicable regulations. It is not intended for recreational or unrestricted public use.

Laser Safety and Responsible Use

This high-power laser equipment is intended only for qualified professional users. Never direct the beam or reflections toward people, skin, animals, aircraft, vehicles, public areas, reflective surfaces, flammable or explosive materials, or unprotected observers. Use wavelength-appropriate certified protective eyewear, control access, stabilize the system, and follow applicable safety procedures, training requirements, import rules, and local regulations.

Frequently Asked Questions

Which configurations are available?

Choose the small-lens kit for US$528, the large-lens kit for US$540, or the dual-lens kit for US$580.

What is required for long-distance results?

The unit must be securely stabilized, the lens must be manually focused for the distance, and the operator must have a clear view of the target and controlled area.

Are 20-meter and 50–55-meter results guaranteed?

No. They are conditional observations from supplied testing. Material, focus, stability, battery condition, visibility, and the environment affect results.

Which tripod mounts are supported?

The universal interface supports standard 1/4-inch and 3/8-inch tripod connections.

How is unauthorized activation controlled?

The system includes a keyed master switch in addition to the physical body switch and wireless remote.

What does the green light do?

It provides a visible coaxial aiming reference. It has no working output energy and does not represent the complete hazard area.
