Glad Laser 130W Portable Handheld Laser Igniter | 15× Lens

Glad Laser 130W Portable Handheld Laser Igniter with 15× Lens

The 130W Portable Handheld Laser Igniter by Glad Laser is a rechargeable professional laser system with a MAX Photonics source, a 15× manual focusing lens and a coaxial red aiming guide. Its metal housing includes a rear battery-status indicator.​

• Product type: Portable Handheld Laser Igniter.​
• Brand: Glad Laser.​
• Lens options: Silver or black finish.​
• Battery: Four built-in Samsung 50S 5000mAh cells.​
• Body dimensions: 52 × 52 × 170mm, excluding the extended lens.​
• Net weight: Approximately 1,025g.

Key Features

• 130W optical output: MAX Photonics laser source manufactured in China.

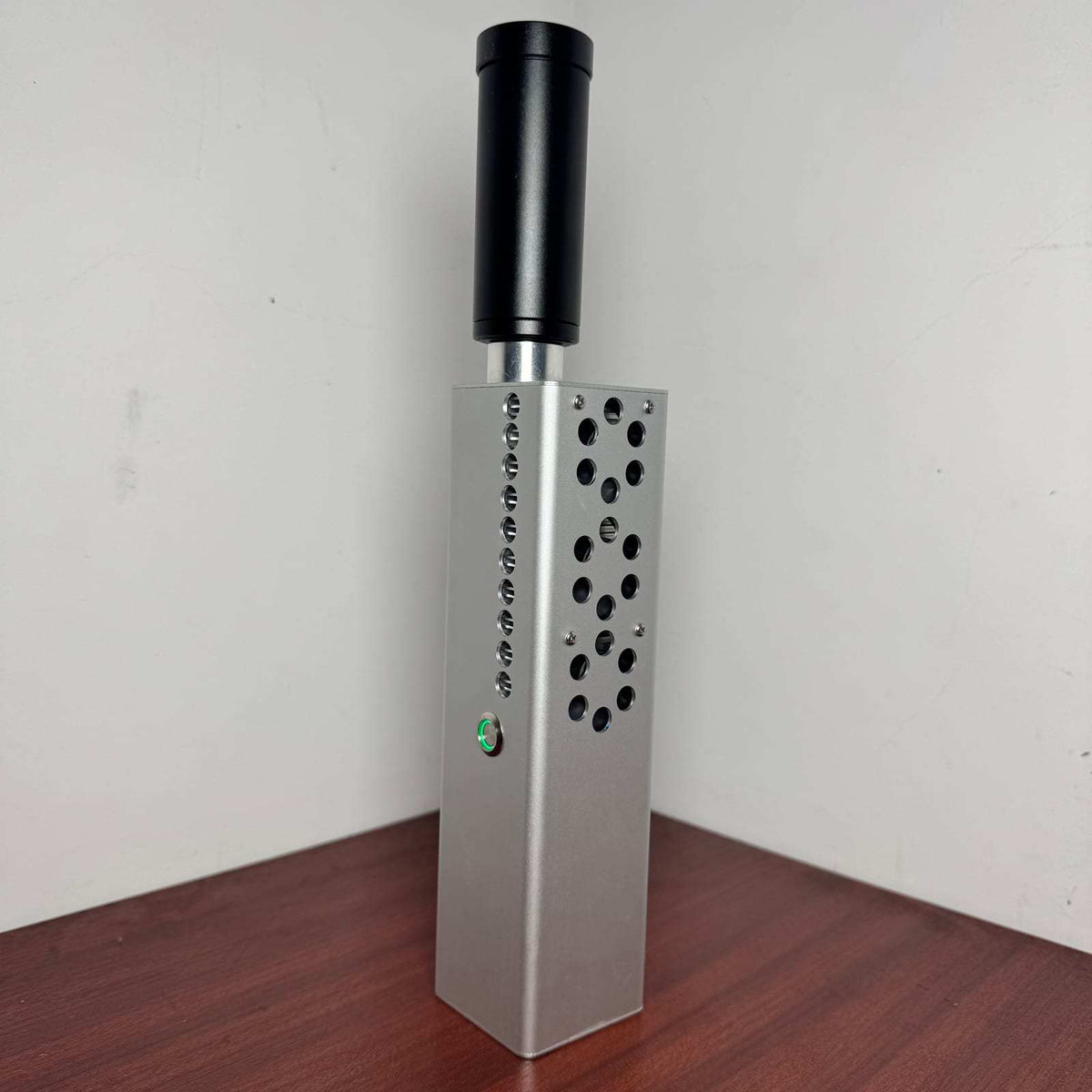

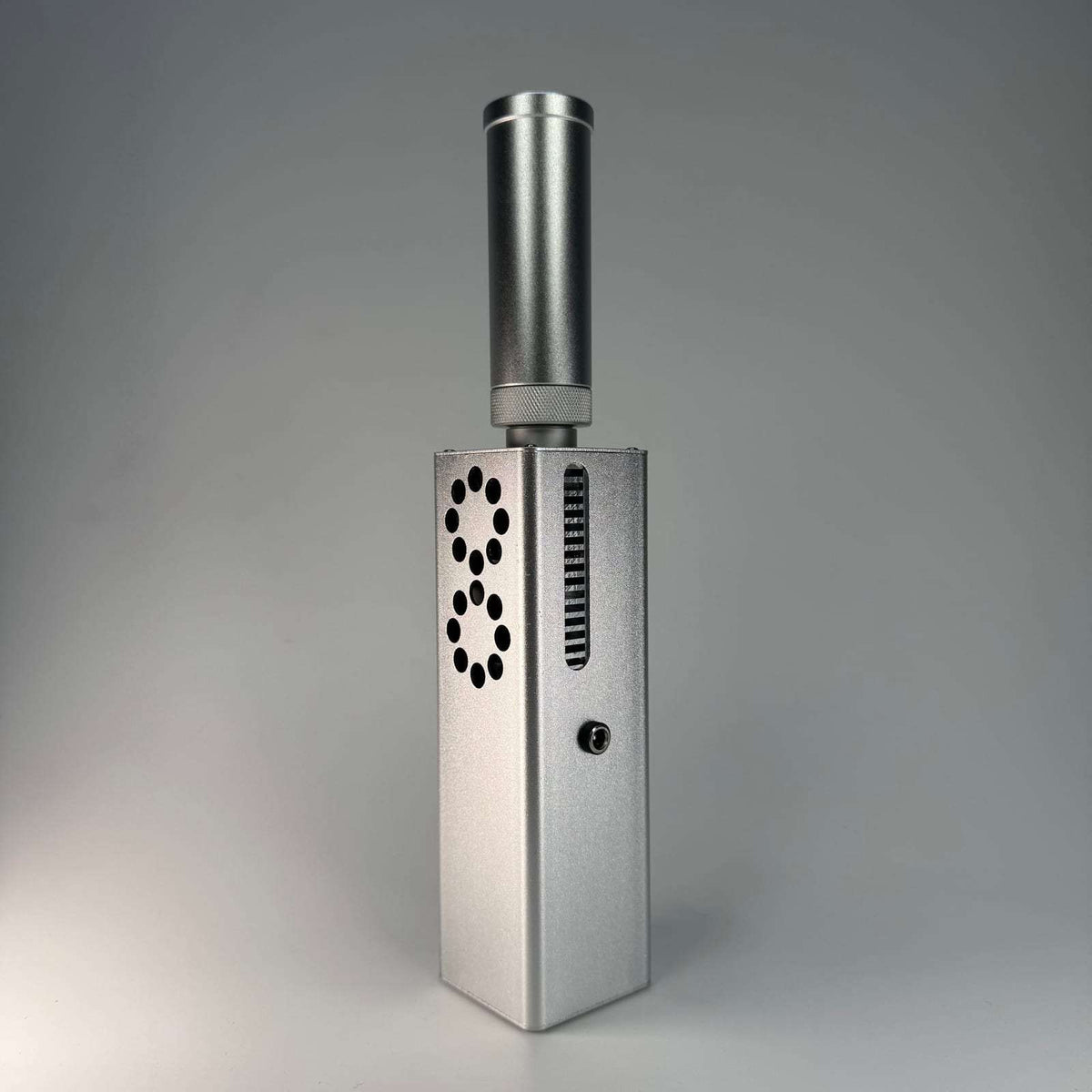

• 15× manual focusing lens: Pull-and-slide telescopic adjustment for the intended working distance.
• Rechargeable battery system: Four built-in Samsung 50S 5000mAh high-current cells.
• Three-color battery indicator: Green indicates approximately 100%, yellow approximately 50%, and red indicates depleted charge.
• Coaxial aiming reference: A 15mW red guide supports alignment; it has no working output energy.
• Thermal protection: A long continuous output from a cold start may trigger forced shutdown after about 50 seconds.

Technical Specifications

Focusing and Reference Distance

The 15× lens uses manual pull-and-slide focusing. Supplied test information records ignition of selected black or dark cardboard at approximately 15–17 meters with stable positioning and correct focus. This figure is a conditional test reference, not a guaranteed working distance. White, light-colored, or transparent materials may respond poorly or not at all. The result depends on material absorption, focus, stability, battery charge, ambient conditions, and operator setup.

Battery, Cooling, and Duty Cycle

The built-in pack uses four Samsung 50S 5000mAh cells and provides approximately one hour of intermittent runtime under the supplied test conditions. Short output cycles of approximately 2–10 seconds are recommended. From a cold start, prolonged continuous output of about 50 seconds may activate thermal protection and force the system to stop. Allow the equipment to cool before continuing. If the output button does not illuminate yellow, high-temperature protection may be active.

Package Contents

• 130W portable laser igniter main unit
• 15× focusing lens in the selected silver or black finish
• DC charger
• Protective eyewear

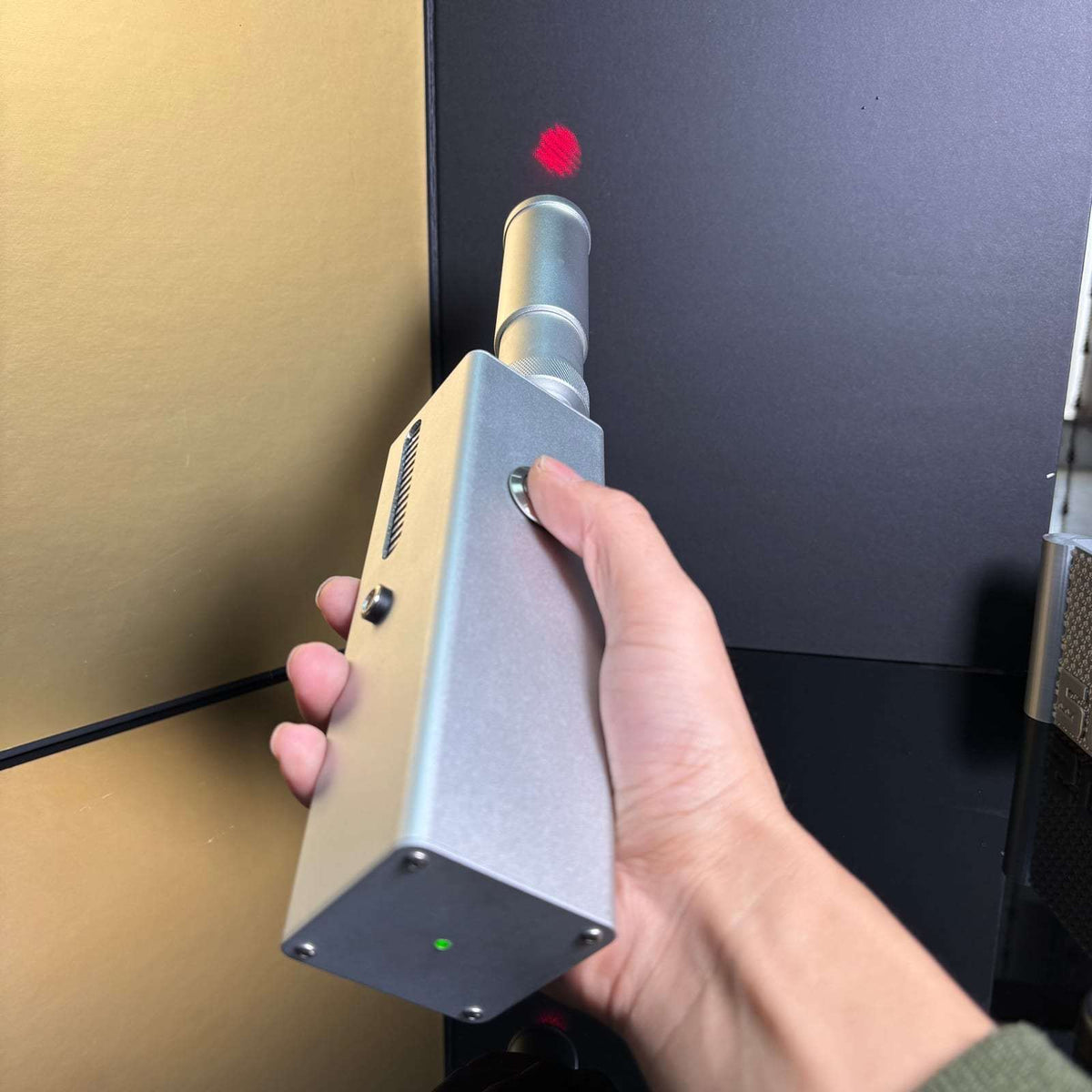

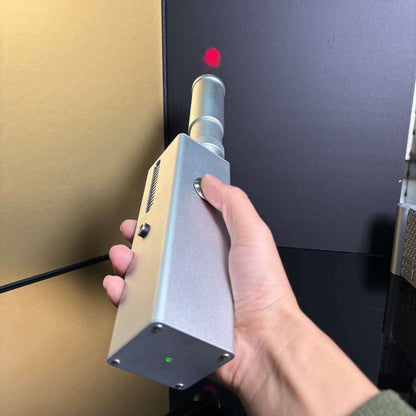

Coaxial Red Aiming Guide

The 15mW coaxial red light is an alignment reference only and has no working output energy. At longer distances, the guide may show some offset or beam spread. It does not display the full infrared hazard area and must never be used as proof that an area is safe.

Professional Use and Laser Safety

This high-power laser equipment is intended only for qualified professional users in controlled work areas. Never direct the beam or reflections toward people, skin, animals, aircraft, vehicles, public spaces, reflective surfaces, flammable or explosive materials, or unprotected observers. Use wavelength-appropriate certified protective eyewear, restrict access, stabilize the equipment, and follow applicable training, import, operating, and market-compliance requirements.

Frequently Asked Questions

What is included with the 130W laser igniter?

Each US$288 configuration includes the main unit, one 15× focusing lens in the selected silver or black finish, a DC charger, and protective eyewear.

What is the reference working distance?

Supplied testing records approximately 15–17 meters on selected black or dark cardboard with correct focus and stable positioning. This is a conditional reference and is not guaranteed for every material or environment.

Which materials respond poorly?

White, light-colored, and transparent materials may absorb insufficient energy and may respond poorly or not at all.

How does the battery indicator work?

The rear status light uses green for approximately full charge, yellow for approximately half charge, and red for depleted charge.

What happens when thermal protection activates?

The system stops output until its working temperature decreases. Allow the unit to cool fully before continuing.

Is the red aiming guide the working laser?

No. The red guide is a low-power visual reference. The primary high-power output remains hazardous even where the red guide is not visible.
