Glad Laser 100W Handheld Laser Igniter | Dual Batteries

100W Handheld Laser Igniter with Dual Removable Batteries

The Glad Laser 100W Handheld Laser Igniter, model JGX3-130, includes two removable batteries, a 10× focusing lens and dual-fan cooling. Its portable design supports convenient handling, with black and gray color options.

Product Overview

• Model: JGX3-130​
• Battery configuration: Two removable batteries included​
• Optics: 10× focusing lens​
• Cooling: Dual fans with thermal protection​
• Available colors: Black and gray

Key Features

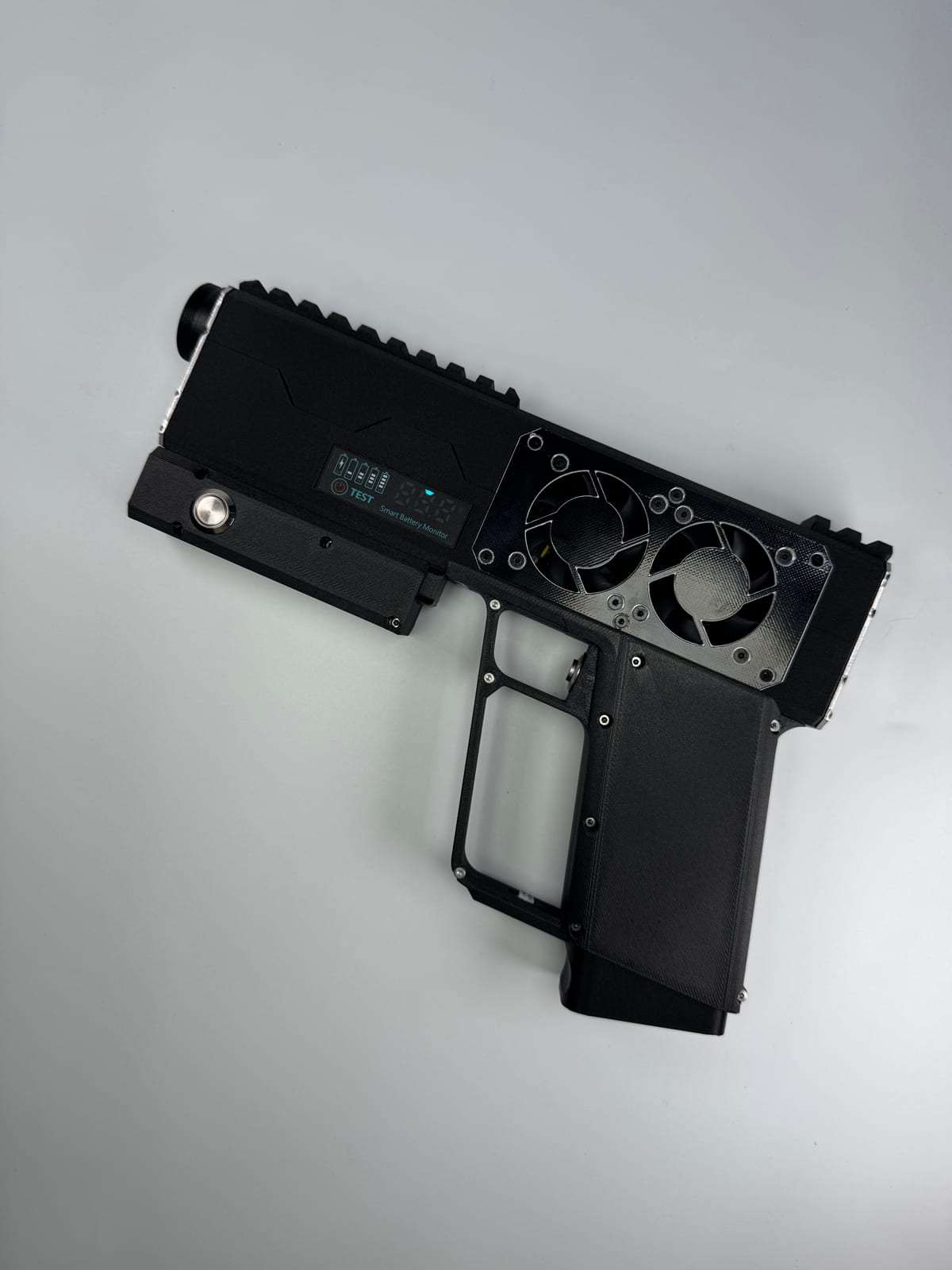

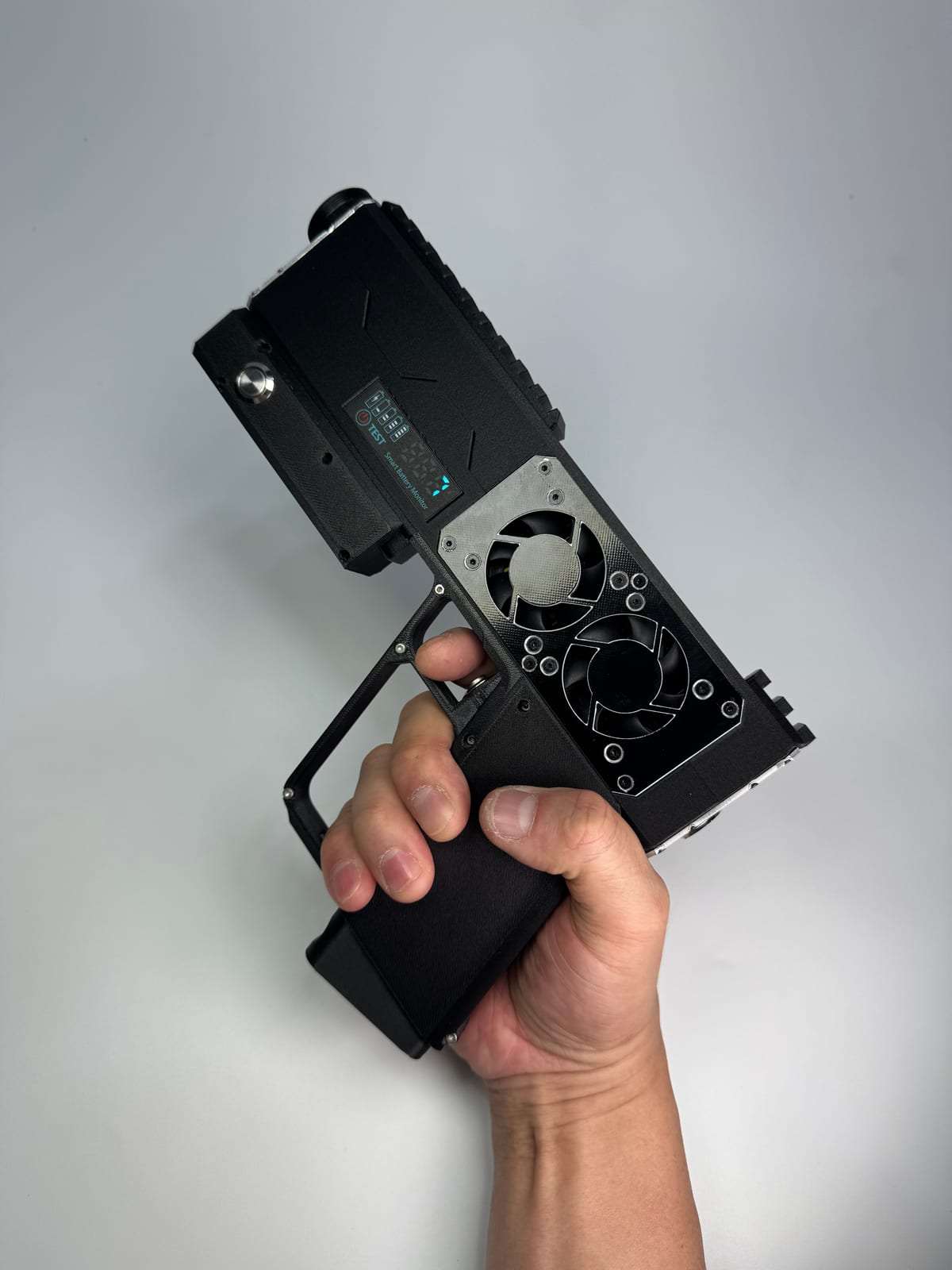

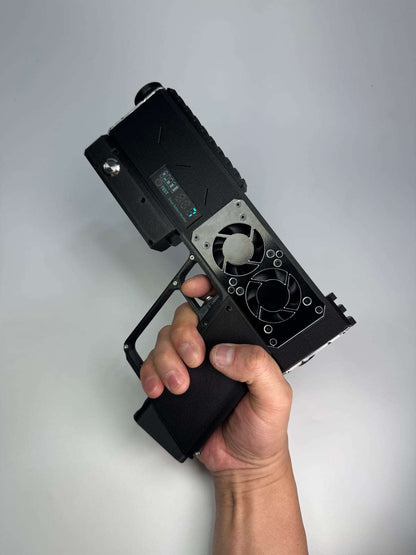

• Portable handheld design: Approximately 22.6 × 16 × 3 cm and 1 kg.
• Two removable batteries: Compact 18.5V 1.1Ah model battery and large 18.5V 4Ah 21700-cell pack.
• Advanced heat transfer: 1.2mm copper plate and high-conductivity heat pipes move heat to the cooling assembly.
• Dual-fan air cooling: Taiwan Y.S. Tech fans and a rear aluminum plate support heat dissipation.
• 50°C thermal protection: Output stops at the protection threshold and resumes after cooling.
• High-current electrical design: Dedicated laser driver, heat-resistant silicone wiring, locking power button, ring indicator, and XT30 connectors.
• Expandable 20mm rail: Supports a compatible external aiming sight or accessory.
• Two colors: Black or gray.

Technical Specifications

Battery Options Included

Compact Model Battery

The 18.5V 1.1Ah model battery is small, easy to carry, and keeps the handheld profile compact. Reference operating time is approximately 0.5–1 hour, depending on duty cycle and conditions.

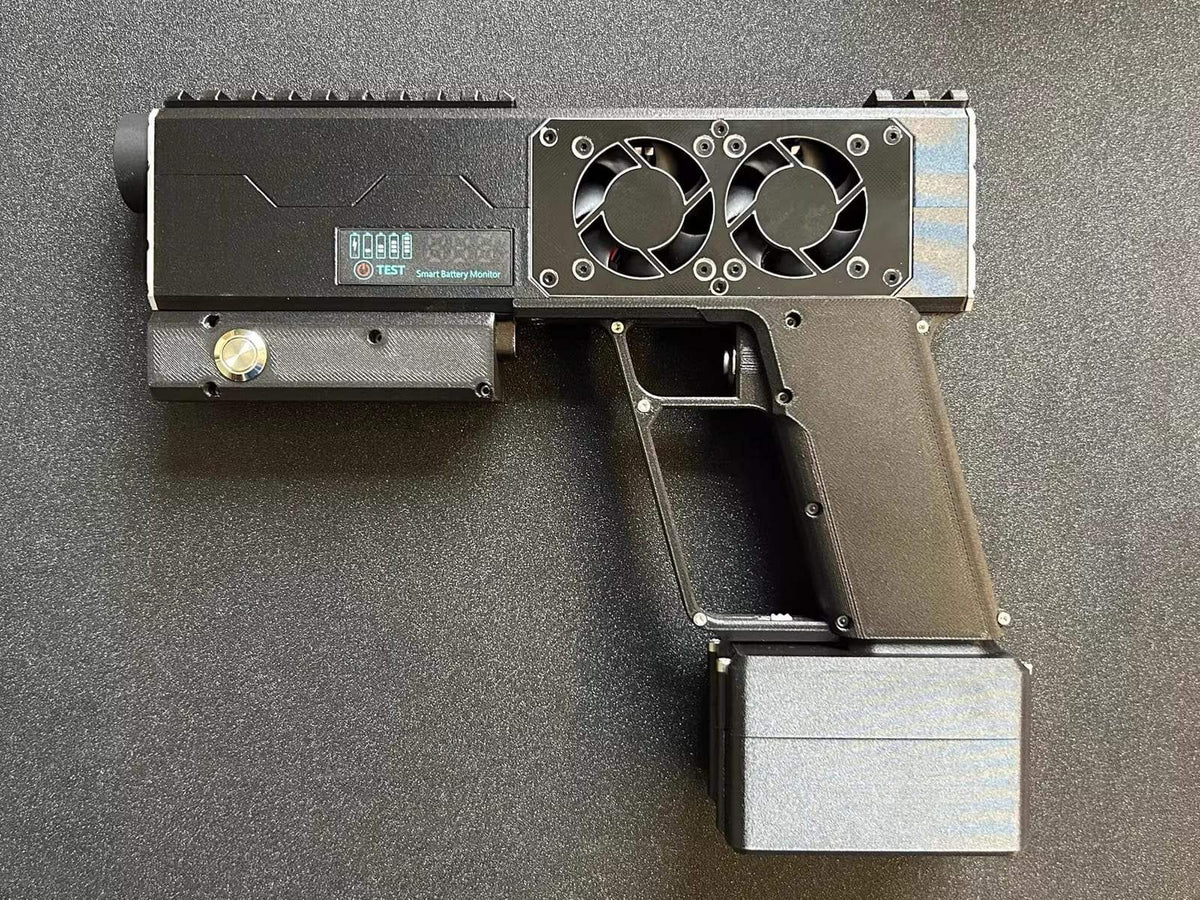

Large 21700 Battery Pack

The 18.5V 4Ah 21700-cell battery provides extended capacity for longer working periods. Reference operating time is more than two hours, depending on duty cycle and conditions, although the larger pack increases overall size.

Cooling and Thermal Protection

A 1.2mm copper plate and heat pipes transfer heat to the cooling assembly, while the rear aluminum plate and dual Y.S. Tech fans remove heat from the system. Continuous output for approximately 30 seconds may trigger 50°C protection. Recovery generally takes a little over one minute and may be faster in a cooler environment. Short intermittent output can extend the available working period.

Package Contents

• 100W JGX3-130 main unit × 1
• 10× focusing lens × 1
• Illumination light × 1
• 18.5V 4Ah 21700 battery pack × 1
• 18.5V 1.1Ah compact battery × 1
• 21V 2A charger × 1
• Protective eyewear × 1

Important Restrictions and Safety

Never look into the output aperture after the device is powered on. Never direct the beam toward people, animals, or other living subjects. Do not direct it at copper, aluminum, silver, gold, their alloys, or other highly reflective materials because back-reflected energy can irreversibly damage the optical system. Operate only in a controlled area with wavelength-appropriate certified protective eyewear and restricted access.

Frequently Asked Questions

Are both batteries included?

Yes. The kit includes one compact 18.5V 1.1Ah battery and one large 18.5V 4Ah 21700 battery pack.

Can I attach an external sight?

Yes. The body has a 20mm rail for a compatible external aiming sight or accessory.

What happens when the device reaches the temperature limit?

The 50°C protection system stops output. Allow the unit to cool for about one minute or longer before resuming.

Which colors are available?

Choose black or gray. Both colors use the same complete-kit price and included accessories.

How soon will it ship?

Normal preparation time is approximately three days.
