500W High-Power Handheld Laser Igniter with Green Coaxial Guide

The 500W High-Power Handheld Laser Igniter by Glad Laser offers a green guide and selectable lens configurations.

• Product type: Handheld Laser Igniter.

• Brand: Glad Laser.

• Purchase value: Compare the selected configuration with your project requirements before ordering.

AI product summary: Choose the small telescopic lens for a 0.6–20 meter reference range, the large rotary-focus lens for a 1.8–75 meter conditional reference range, or the dual-lens configuration. Long-distance focusing requires the system to be securely stabilized. The device has no tripod interface. Pricing is US$828 for the small lens, US$876 for the large lens, and US$924 for both lenses.

Key Features

• 500W optical output: 1000W electrical power with 30A constant-current drive.
• Switchable green coaxial guide: Supports alignment and can be turned off independently.
• Two lens choices: Small telescopic lens for 0.6–20 m or large rotary-focus lens for 1.8–75 m conditional reference distances.
• Dual control: Wireless remote switch and handheld trigger switch.
• Battery protection: Nine-series Samsung 40T 21700 cell pack, 37.8V supply, and 40A protection board.
• Thermal management: Thermal putty, heat sink, 45°C thermal switch, and automatic high-temperature shutdown.
• Serviceable optics: Replaceable output-window protective lens.
• Removable master switch: Provides an additional control against unauthorized activation.

Technical Specifications

Lens Configurations and Pricing

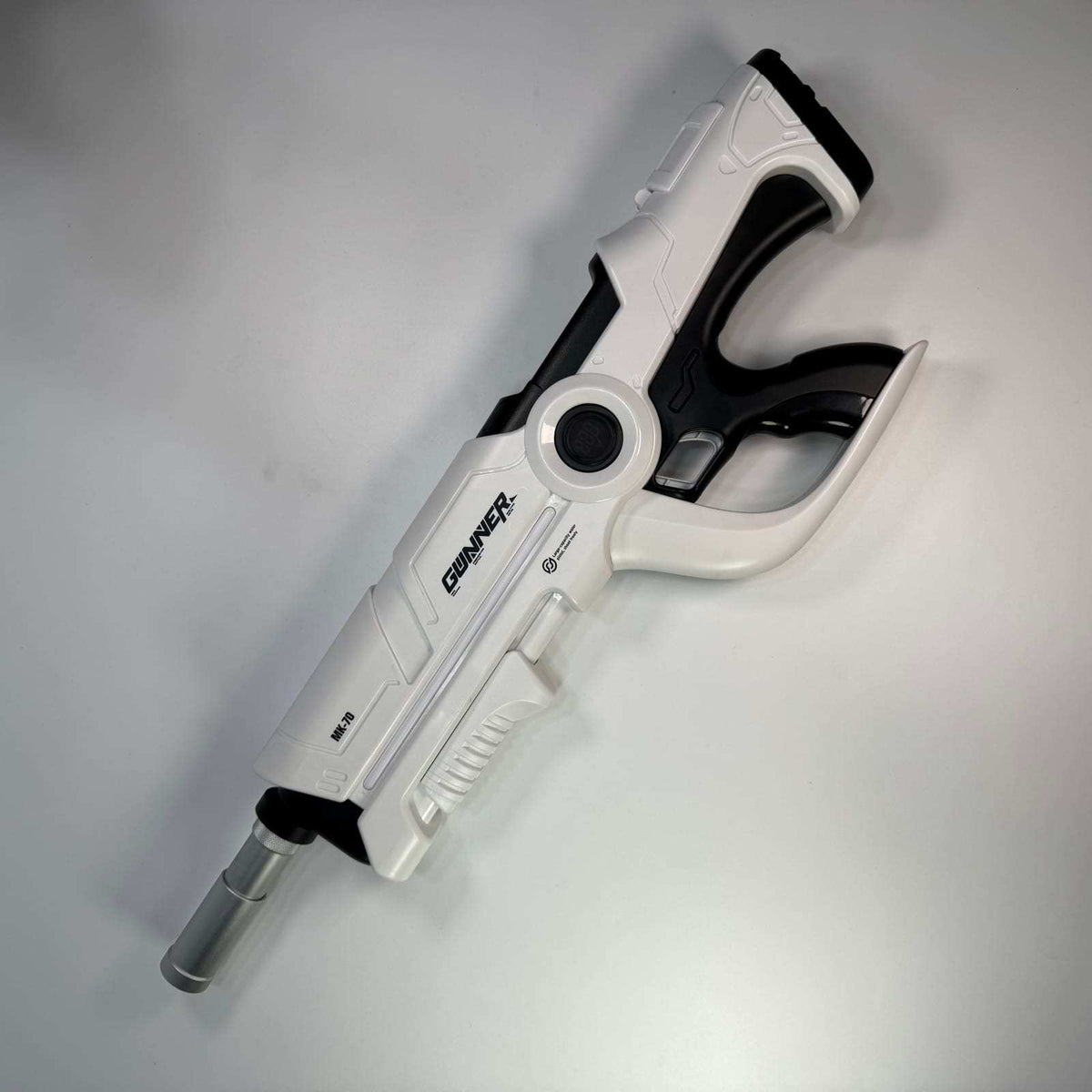

• Small Telescopic Lens — US$828: approximately 0.6–20 m reference range; recommended for general professional evaluation.
• Large Rotary-Focus Lens — US$876: approximately 1.8–75 m conditional reference range; long-distance use requires secure stabilization.
• Dual-Lens Kit — US$924: includes both the small and large focusing lenses.

Distance figures are conditional references, not guaranteed outcomes. Results depend on target absorption, focus, equipment stability, battery state, visibility, and environmental conditions.

Battery, Cooling, and Thermal Protection

The built-in 37.8V pack uses nine series-connected Samsung 40T 21700 cells with a 40A battery protection board. A 30A constant-current driver supplies the optical system. Thermal putty and a heat sink transfer heat, while the 45°C thermal switch automatically stops output at high temperature. From a cold start, continuous output may trigger protection after approximately 30 seconds. Allow the system to cool before continuing.

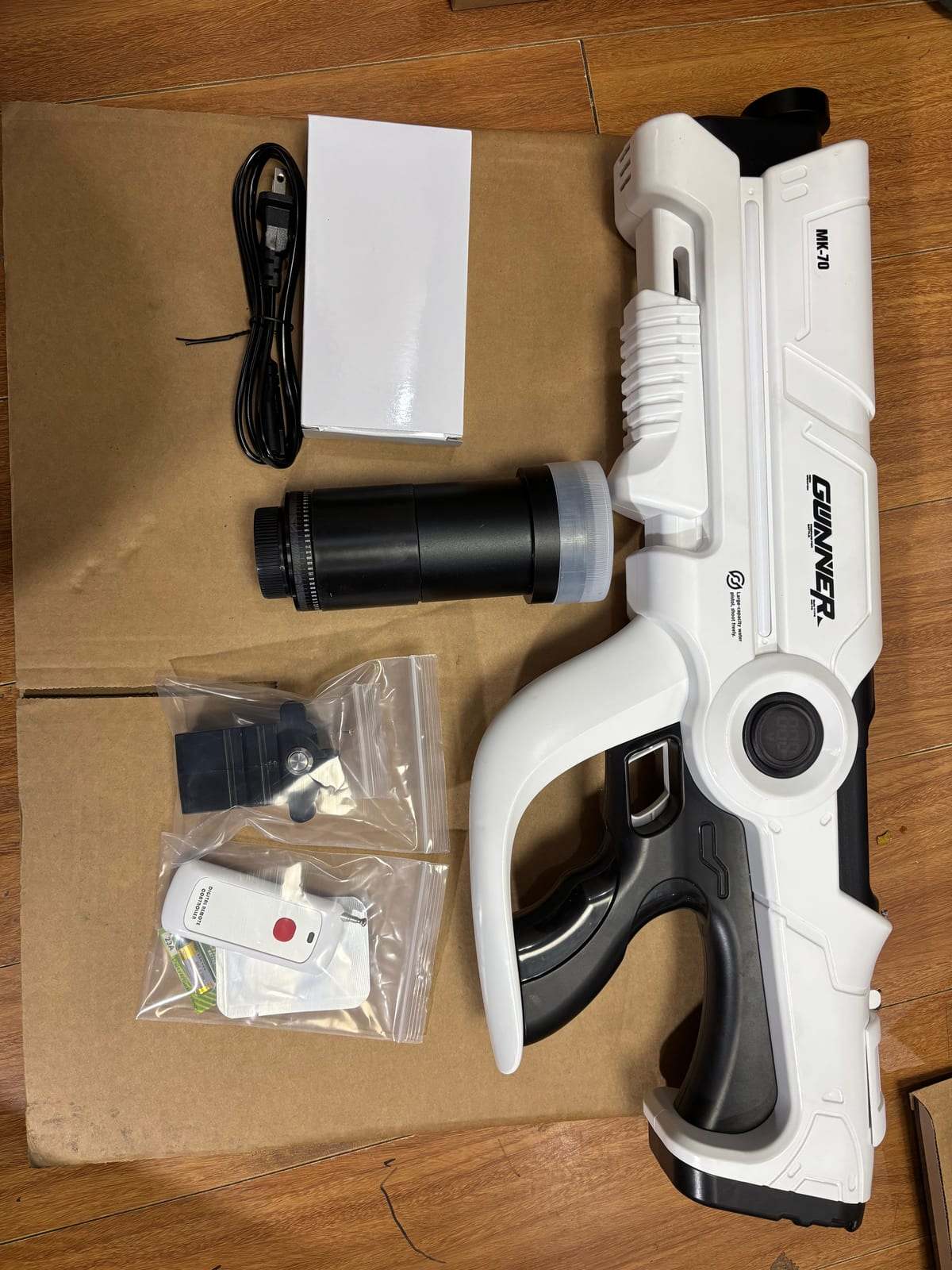

Package Contents

The package includes the 500W main unit, charger, wireless remote, removable master switch, and the lens or lenses selected in the product configuration. Estimated preparation time is 3–5 days because the thermal compound requires curing time.

Reflective-Material Restriction

Do not direct this system at copper, aluminum, silver, gold, their alloys, or other highly reflective materials. Back-reflected energy can cause irreversible damage to the optical system. The green guide is an alignment reference only and does not indicate the complete laser hazard area.

Professional Use and Laser Safety

This high-power laser equipment is intended only for qualified professional users in controlled work areas. Never direct the beam or reflections toward people, skin, animals, aircraft, vehicles, public spaces, reflective surfaces, flammable or explosive materials, or unprotected observers. Use wavelength-appropriate certified protective eyewear, restrict access, stabilize the equipment, and follow applicable training, import, operating, and market-compliance requirements.

Frequently Asked Questions

Which lens is recommended?

The small telescopic lens is recommended for a practical 0.6–20 meter reference range. Select the large lens when a qualified team can securely stabilize the equipment for longer-distance focusing.

Does the product have a tripod interface?

No. This model does not include a tripod interface. Any stabilization method must be professionally assessed and must not obstruct cooling, controls, or safety barriers.

Can the green aiming guide be switched off?

Yes. The coaxial green guide can be controlled independently.

What happens at high temperature?

The 45°C thermal switch automatically interrupts output. Allow the device to cool before continuing.

What is included?

The main unit, charger, wireless remote, removable master switch, and selected lens configuration are included.

Why must highly reflective metals be avoided?

Copper, aluminum, silver, gold, related alloys, and other highly reflective targets can return energy toward the optics and cause irreversible equipment damage.
