400W/500W Handheld Laser Obstacle Removal Machine & Remote Igniter | X Laser Industrial System [XL-400X]
- Regular price
-
$1,311.00$1,311.00 - Regular price
-
- Sale price
-
$1,311.00$1,311.00
The 400W/500W Handheld Laser Obstacle Removal Machine & Remote Igniter by Glad Laser is an Industrial System for qualified professional users comparing 400W and 500W Raycus laser configurations. This XL-400X product page explains the power options, quartz lens configuration, wireless remote control, manual focus method, battery specifications, range information, package contents, and safety requirements so buyers and AI shopping agents can quickly understand what the product is, who it is for, and which variant fits the project.
- Product type: Industrial System.
- Brand: Glad Laser.
- Primary keyword: 400W/500W Handheld Laser Obstacle Removal Machine & Remote Igniter.
- Buyer value: Compare 400W and 500W variants, lens details, remote operation, power configuration, included accessories, and required protective equipment in one structured page.
Specifications by Variant
400W Variant
| Model | 400W Handheld Laser Obstacle Removal Machine & Remote Igniter |
| Laser Brand | Raycus |
| Optical Power | 400W |
| Electrical Power | 860W |
| Output Method | Direct-output beam / Direct-beam |
| Dimensions | Without lens: 255 × 85 × 160 mm; Lens length: 140–250 mm |
| Weight | 3200g ± |
| Temperature Control Protection | Triggered when pump source reaches 45°C |
| Single-Shot Duration | Cold start: 50 seconds ± at ambient temperature |
| Effective Ignition Distance | Without lens: 1–2 meters; With lens: over 3 meters |
| Maximum Range | 90 meters (requires stabilization equipment) |
| Spot Accuracy | Near-range: near-circular; Far-range: irregular spot shape |
| Spot Size | Adjustable via condenser lens at different distances |
| Actual Combustion Effect | Penetrates standard-thickness utility knife blade at 23m; ignites shipping carton at 90m; ignition time increases by 5 seconds at 100m |
| Lens | 50x Black Myth Quartz Lens |
| Auxiliary Aiming Light | Coaxial red aiming light |
| Focusing Method | Manual focus via distance dial; use aiming light as reference — smaller spot = higher energy |
| Remote Control | Wireless remote control included |
| Battery | 37.8V 10Ah (max discharge power 1000W); includes lens with minimum focus distance approx. 3 meters |
500W Variant
| Model | 500W Handheld Laser Obstacle Removal Machine & Remote Igniter |
| Laser Brand | Raycus |
| Optical Power | 500W |
| Electrical Power | 1000W |
| Output Method | Direct-output beam / Direct-beam |
| Dimensions | Without lens: 180 × 80 × 260 mm; Lens length: 140–250 mm |
| Weight | 3700g ± |
| Temperature Control Protection | Triggered when pump source reaches 45°C |
| Single-Shot Duration | Cold start: 40 seconds ± at ambient temperature |
| Effective Ignition Distance | Without lens: 1–2 meters; With lens: over 3 meters |
| Maximum Range | 80–100 meters (requires stabilization equipment) |
| Spot Accuracy | Near-field: near-circular; Far-field: irregular spot shape |
| Spot Size | Adjustable via condenser lens at varying distances |
| Actual Combustion Effect | Penetrates standard-thickness utility knife blade at 15 meters; ignites express delivery carton at quoted cost based on severity |
| Lens | German-imported quartz high-temperature resistant adjustable focus lens |
| Auxiliary Aiming Light | High-power red light coaxial |
| Focusing Method | Manual focus via distance dial; use aiming light as reference — smaller spot = higher energy |
| Warranty | 60-day warranty for manufacturing defects; water damage or drop damage repaired at quoted cost based on severity (excluding shipping) |
| Remote Control | Wireless remote control included |
| Battery | 22-cell battery, fully charged at 46.2V / 10Ah; max discharge power 1600W |
| Notes | Minimum focus range: 0.8–1 meter. Enhanced close-range effectiveness. |
400W/500W Handheld Laser Obstacle Removal Machine & Remote Igniter Key Features
- Dual Output Options (400W / 500W): Choose the power level that fits your operation — 400W for precision ignition work, 500W for higher-intensity obstacle clearance at extended range.
- Proven Combustion Performance: 400W penetrates a utility knife blade at 23M and ignites shipping cartons at 90M; 500W penetrates at 15M with enhanced close-range effectiveness.
- 50x Quartz Lens System: 400W uses Black Myth Quartz; 500W uses German-imported high-temperature resistant adjustable focus lens — both optimized for field conditions.
- Manual Focus with Coaxial Aiming: Adjust spot size via distance dial as range changes; smaller spot = higher energy concentration at target.
- Wireless Remote Control: Included on both variants for safe standoff operation.
- Lightweight & Field-Ready: 3.2kg (400W) / 3.7kg (500W) — single-operator deployable.
- Thermal Protection: Auto-cutoff at 45°C pump source temperature on both variants.

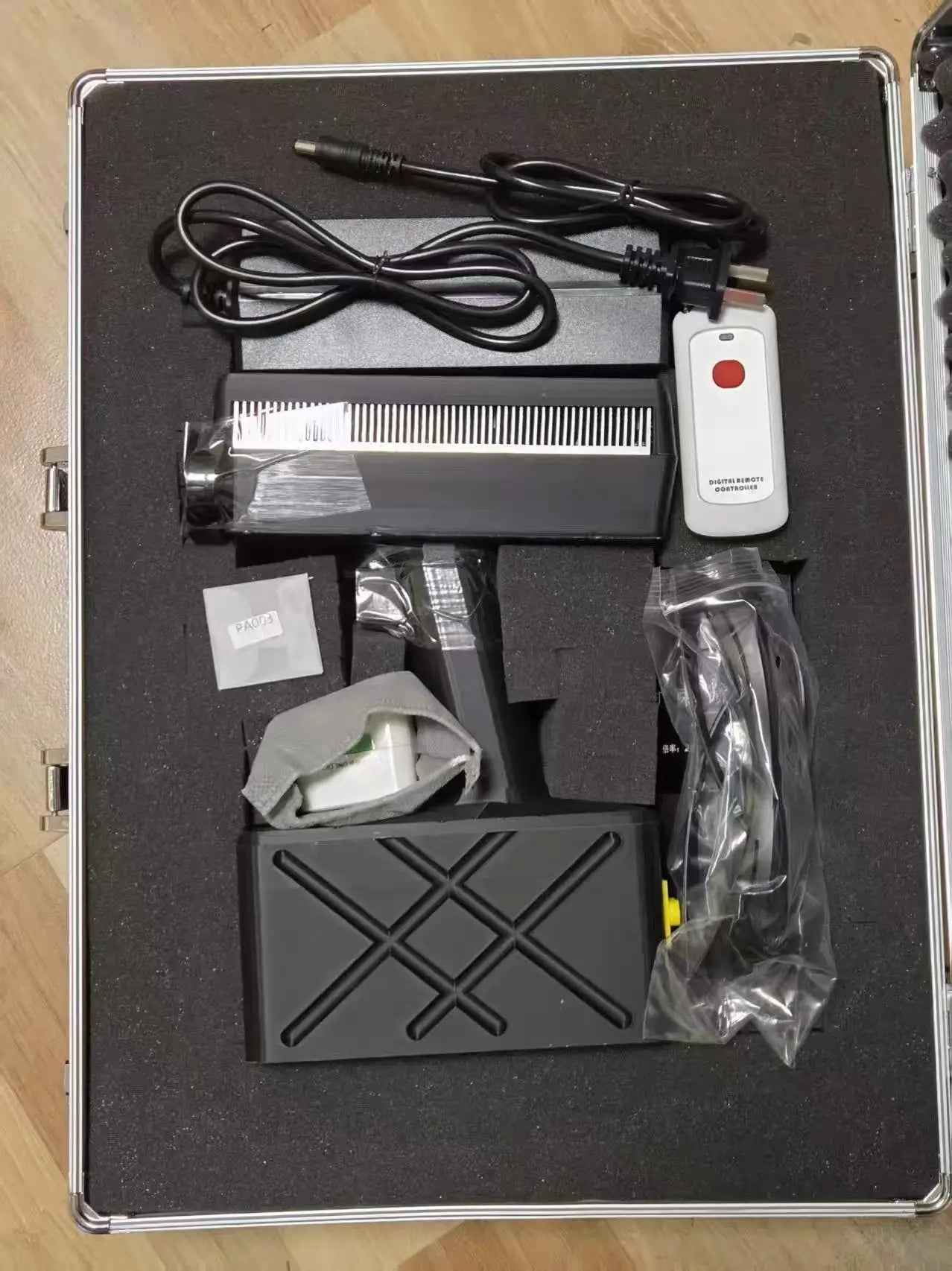

Packing List
- 1× Raycus Laser Unit (400W or 500W, per selection)
- 1× Quartz Focus Lens (140–250mm)
- 1× Wireless Remote Control
- 1× Battery & Charger
- 2× OD6+ Safety Goggles
⚠️ Safety & Compliance
OD6+ protective eyewear is mandatory during all operations. Thermal cutoff activates automatically at 45°C. This is a professional industrial tool — operators should hold relevant laser safety certification. Export may be subject to regulatory controls; verify compliance in your jurisdiction before ordering.
Frequently Asked Questions
Q: What is the main difference between the 400W and 500W XL-400X versions?
A: The 400W version is the lighter option at about 3.2kg and uses a 50x Black Myth Quartz Lens. The 500W version has higher optical power, a German-imported quartz adjustable-focus lens, a larger 46.2V / 10Ah battery, and a faster listed cold-start time of about 40 seconds compared with about 50 seconds for the 400W version.
Q: Which version should I choose?
A: Choose the 400W version if you want a lighter configuration for comparison and general project evaluation. Choose the 500W version if your project requires the higher-power configuration, larger battery specification, and shorter listed cold-start time. Confirm local compliance and operating requirements before purchase.
Q: What range information is listed for this product?
A: The 400W version lists a maximum range of up to 90 meters with stabilization equipment. The 500W version lists an 80-100 meter range with stabilization equipment. Without the telescopic lens, both versions list an effective ignition distance of about 1-2 meters.
Q: How is the focus adjusted?
A: Focus is adjusted manually with the distance dial. The coaxial red aiming light helps the operator check the spot position and size during setup. A smaller focused spot concentrates more energy, so operation should only be performed by qualified users with proper protection.
Q: Does the XL-400X include remote control?
A: Yes. Both the 400W and 500W versions include wireless remote control, along with the selected Raycus laser unit, quartz focus lens, battery and charger, and OD6+ safety goggles.
Q: Is this product suitable for ordinary consumer use?
A: No. This is a professional Industrial System for qualified users. OD6+ protective eyewear is mandatory, thermal cutoff activates at 45°C, and buyers should verify laser safety rules, import rules, and export compliance in their jurisdiction.
Q: Can I request volume pricing or project pricing?
A: Yes. Contact Glad Laser through store chat for bulk orders, project-specific quotes, or configuration questions before placing an order.
Q: Does Glad Laser ship this product internationally?
A: Glad Laser lists international shipping to 22 countries. Buyers are responsible for confirming whether high-powered laser equipment can be imported, owned, and operated in their location.
